Design a Search Autocomplete System

Also called "design top k" or "design top k most searched queries."

Step 1 - Understand the problem and establish design scope #

Requirements:

• Matching only at the beginning of a search query (not middle)
• Return 5 autocomplete suggestions
• Ranked by historical query frequency (popularity)
• No spell check/autocorrect
• English only, lowercase alphabetic characters
• 10 million DAU

Non-functional requirements:

• Fast response: < 100ms (otherwise UI stutters — per Facebook engineering)
• Relevant, sorted, scalable, highly available

Back of the envelope estimation:

• 10M DAU × 10 searches/day = 100M queries/day
• 20 bytes/query (4 words × 5 chars, ASCII)
• 20 requests per search (one per character typed)
• QPS: 10M × 10 × 20 / 86400 = ~24,000 QPS
• Peak QPS: ~48,000
• New data/day: 10M × 10 × 20B × 20% (new queries) = 0.4 GB

Step 2 - Propose high-level design and get buy-in #

Two parts: Data gathering service (aggregate queries) + Query service (return top 5).

Data gathering service #

Frequency table: (query, frequency). Updated in real-time as users search.

Query service #

When user types "tw", SQL: SELECT * FROM frequency_table WHERE query LIKE 'prefix%' ORDER BY frequency DESC LIMIT 5

Works for small data, but DB becomes bottleneck at scale.

Step 3 - Design deep dive #

Trie data structure #

Core data structure: trie (prefix tree).

• Root = empty string
• Each node: 26 children (a-z); stores a character
• Frequency info added to nodes to support sorting

Basic trie algorithm (O(p) + O(c) + O(c log c)):

1. Find prefix node: O(p)
2. Traverse subtree to get all valid children: O(c)
3. Sort children by frequency, get top k: O(c log c)

Two optimizations:

1. Limit max prefix length: Users rarely type > 50 chars → O(p) → O(1)
2. Cache top k queries at each node: Store top 5 at every node. Trades space for time.

Optimized time complexity: O(1) for finding prefix + returning top k.

Data gathering service (redesigned) #

Real-time updates impractical: billions of queries/day would slow query service; top suggestions don't change frequently.

Components:

• Analytics Logs: Append-only raw query data

• Aggregators: Aggregate data for processing. For real-time (Twitter): short intervals. For many cases: weekly is sufficient.

• Workers: Async jobs at regular intervals; build trie, store in Trie DB
• Trie Cache: Distributed in-memory cache; weekly snapshot of DB
• Trie DB: Persistent storage options:
  • Document store (MongoDB): Serialized trie snapshot
  • Key-value store: Map each prefix to a hash table key, node data to value

Query service (improved) #

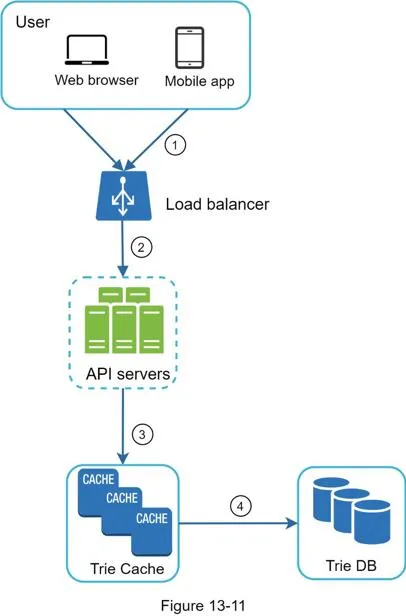

1. Query → Load balancer → API servers
2. API servers get trie data from Trie Cache → construct suggestions
3. Cache miss → replenish from Trie DB

Optimizations:

• AJAX: No full page refresh on autocomplete
• Browser caching: Cache results; Google caches for 1 hour (max-age=3600, private)

• Data sampling: Log only 1 out of every N requests

Trie operations #

Create: Workers build from aggregated data.

Update:

• Option 1: Rebuild weekly; replace old trie
• Option 2: Update individual node directly (slow; cascade-update ancestors since they cache children's top queries)

Delete: Filter layer in front of Trie Cache removes unwanted suggestions (hateful, violent, explicit). Async physical removal from DB for next build cycle.

Scale the storage #

Sharding by first character (a–m, n–z) → up to 26 shards. Beyond 26: shard on second/third character. Problem: uneven distribution ('c' has more words than 'x').

Solution: Analyze historical data distribution. Shard map manager maintains lookup DB. Example: 's' alone on one shard; 'u' through 'z' combined on another.

Step 4 - Wrap up #

Follow-up Q&A:

Multi-language support: Store Unicode characters in trie nodes.

Country-specific top queries: Build different tries per country; store in CDNs.

Trending (real-time) search queries: Original weekly rebuild doesn't work. Ideas:

• Reduce working set by sharding
• Assign more weight to recent queries in ranking model
• Use stream processing: Hadoop MapReduce, Spark Streaming, Storm, Kafka

Reference materials [1] The Life of a Typeahead Query (Facebook) [2] How We Built Prefixy [3] Prefix Hash Tree (Berkeley) [4] MongoDB wikipedia [5] Unicode FAQ [6] Apache Hadoop [7] Spark Streaming [8] Apache Storm [9] Apache Kafka
