Scale from Zero to Millions of Users

Scaling from a single server to millions of users requires continuous refinement through multiple architectural layers.

Single server setup #

Everything runs on one server: web app, database, cache, etc.

Request flow:

1. Users access via domain names (DNS, usually 3rd-party service)
2. DNS returns IP address to browser/mobile app
3. HTTP requests sent directly to web server
4. Web server returns HTML/JSON

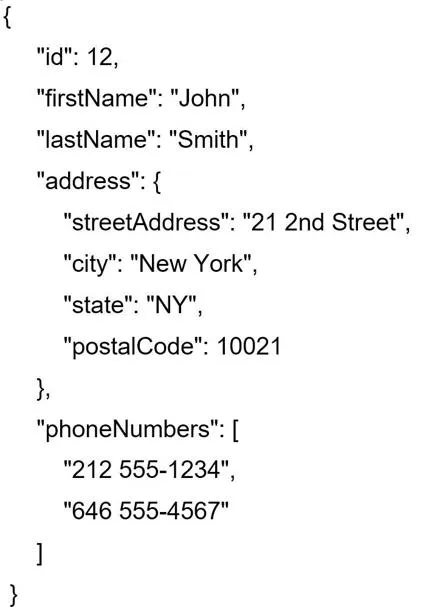

Traffic sources: Web applications (server-side languages + client-side HTML/JS) and mobile applications (HTTP + JSON). Example: GET /users/12 returns JSON user object.

Database #

With growth, separate web tier from data tier to scale independently.

Relational (SQL): MySQL, Oracle, PostgreSQL. Data in tables/rows, supports JOINs. Non-relational (NoSQL): CouchDB, Neo4j, Cassandra, HBase, DynamoDB. Four categories: key-value, graph, column, document stores. No JOINs.

Choose NoSQL when: super-low latency needed, unstructured data, only need serialization (JSON/XML/YAML), or massive data storage.

Vertical scaling vs horizontal scaling #

• Vertical (scale up): Add more CPU/RAM to existing server. Simple but has hard limits, no failover, expensive.
• Horizontal (scale out): Add more servers to resource pool. Preferred for large-scale applications.

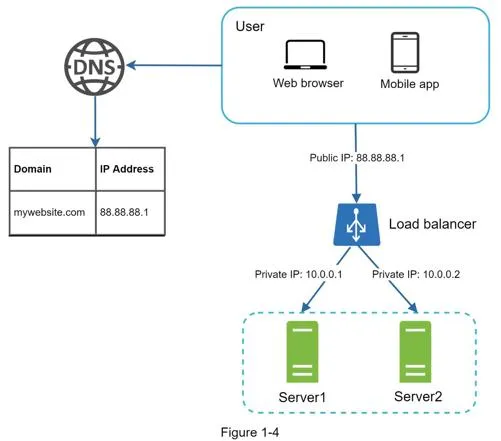

Load balancer #

Evenly distributes incoming traffic among web servers in a load-balanced set.

• Users connect to load balancer's public IP
• Web servers use private IPs (unreachable from internet)
• If one server goes offline, traffic routes to healthy servers; new servers added seamlessly
• Solves failover and availability issues for the web tier

Database replication #

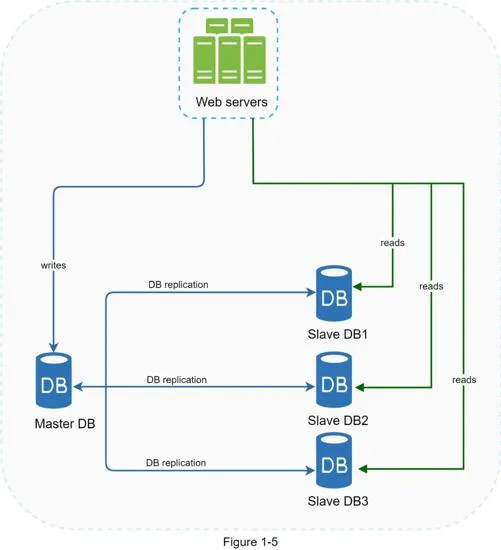

Master/slave model: master supports writes only, slaves support reads only (typically more slaves since read ratio is higher).

Advantages:

• Better performance: parallel query processing across slaves
• Reliability: data preserved even if one server destroyed
• High availability: system operates even if one database offline

Failure handling:

• Slave offline: reads redirected to master (or other slaves), new slave replaces old one
• Master offline: a slave promoted to new master (requires data recovery scripts for missing data). Multi-master and circular replication are more complex alternatives.

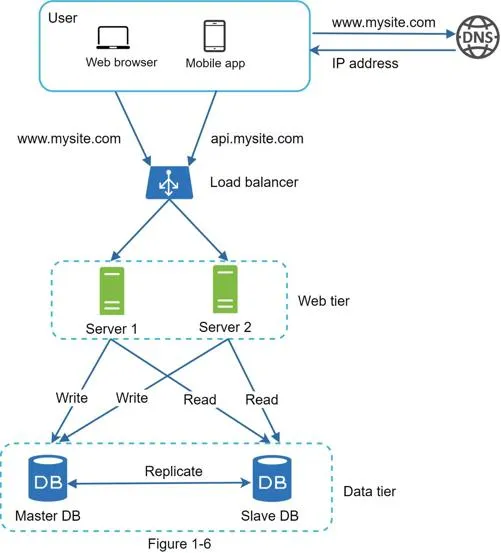

Full request flow: User → DNS → LB public IP → HTTP request routed to Server 1/2 → read from slave DB → write/update/delete → master DB.

Cache #

Temporary storage for expensive responses or frequently accessed data in memory. Mitigates repeated database calls.

Read-through cache strategy: Web server checks cache → if hit, return data → if miss, query DB, store in cache, return data.

Considerations:

• Use when data is read frequently, modified infrequently. Not ideal for persistent data (volatile memory).
• Expiration policy: Too short = frequent DB reloads; too long = stale data.
• Consistency: Keeping data store and cache in sync is challenging at scale (see Facebook's "Scaling Memcache" paper).

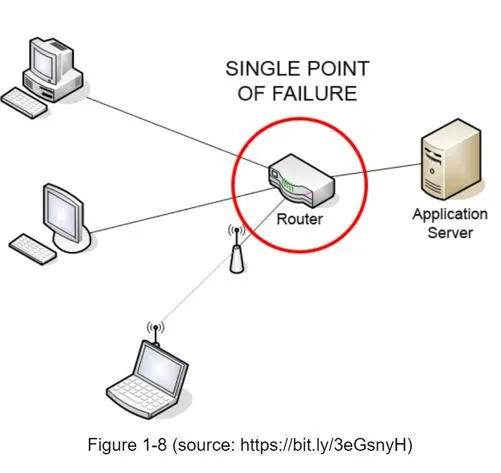

• Mitigating failures: Multiple cache servers across data centers avoid SPOF. Overprovision memory by percentage.

• Eviction Policy: LRU most popular. Also LFU, FIFO.

Content delivery network (CDN) #

Network of geographically dispersed servers caching static content (images, videos, CSS, JS).

CDN workflow:

1. User requests image via CDN-provided URL (e.g., https://mysite.cloudfront.net/logo.jpg)
2. CDN server checks cache; if miss, requests from origin (web server or S3)
3. Origin returns file with optional TTL header
4. CDN caches and returns to User A
5. User B requests same image → served from CDN cache (if TTL not expired)

Considerations:

• Cost: charged for data transfers in/out. Remove infrequently used assets.
• Cache expiry: too long = stale content; too short = repeated origin reloading.
• CDN fallback: clients should detect CDN outage and request from origin.
• Invalidating files: Use CDN vendor APIs or object versioning (e.g., image.png?v=2).

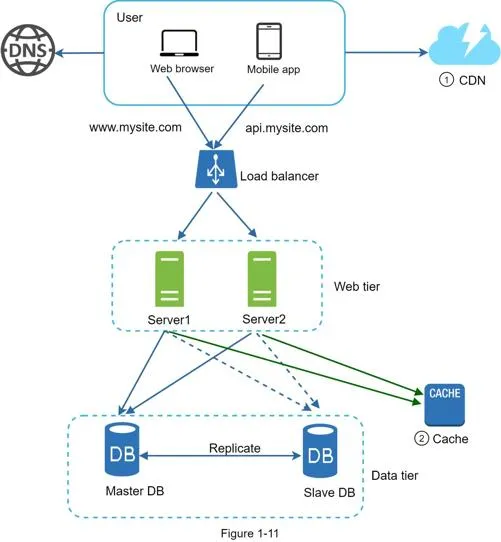

After CDN + cache: static assets served from CDN, database load lightened.

Stateless web tier #

Move state (session data) out of web tier into persistent storage (DB or NoSQL) so any web server can handle any request.

Stateful architecture: Sticky sessions required to route same client to same server. Adding/removing servers is difficult.

Stateless architecture: HTTP requests go to any server; state fetched from shared data store.

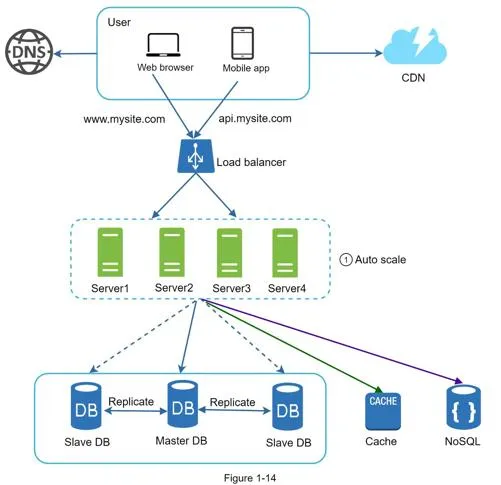

Benefits: simpler, more robust, scalable. Enables auto-scaling (add/remove servers based on traffic). NoSQL data store preferred for session data.

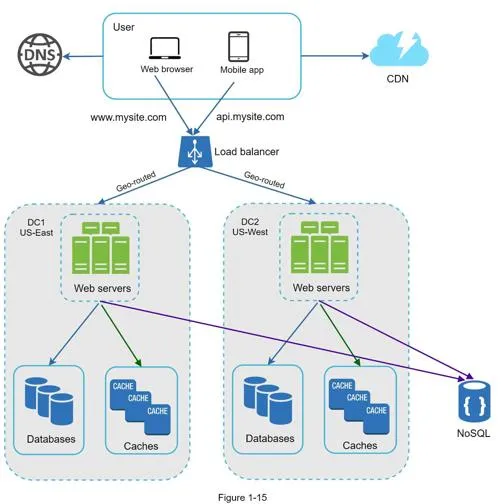

Data centers #

• Users geoDNS-routed to closest data center (split traffic x% US-East, (100−x)% US-West)

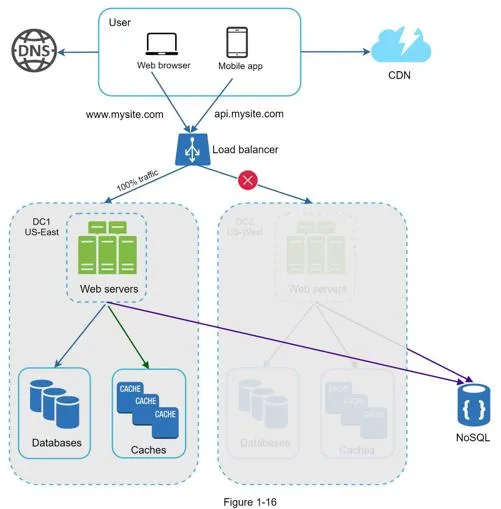

• On data center outage, all traffic routed to healthy data center

Technical challenges:

• Traffic redirection: GeoDNS directs to nearest data center
• Data synchronization: Replicate data across multiple data centers (see Netflix's async multi-datacenter replication)
• Test and deployment: Automated deployment tools essential for consistency across data centers

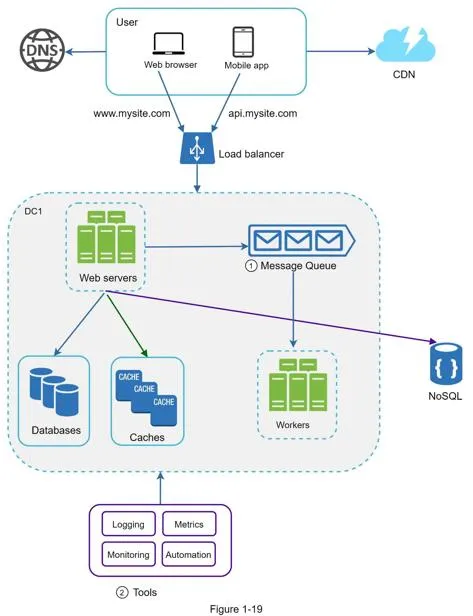

Message queue #

Durable, in-memory component supporting asynchronous communication. Producers publish messages, consumers subscribe and process.

Decouples components so they scale independently. Example: photo processing — web servers publish jobs to queue, photo processing workers consume asynchronously. When queue grows, add more workers; when empty, reduce workers.

Logging, metrics, automation #

Essential at scale:

• Logging: Monitor error logs per server or aggregate to centralized service
• Metrics: Host-level (CPU, memory, disk I/O), aggregated (DB/cache tier performance), business (DAU, retention, revenue)
• Automation: CI (verify each check-in), automated build/test/deploy

Database scaling #

Vertical scaling #

Add more CPU/RAM/Disk to existing machine. Stack Overflow (2013): 10M+ monthly unique visitors, 1 master DB. Limitations: hardware limits, SPOF risk, expensive.

Horizontal scaling (sharding) #

Separate large databases into smaller shards, each with same schema but unique data.

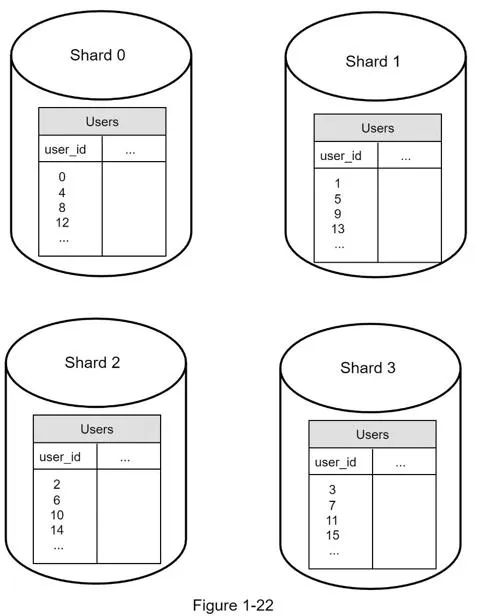

• Sharding key (partition key): Determines data distribution. Example: user_id % 4 = shard index. Must evenly distribute data.
• Challenges:
  • Resharding: Needed when a shard can't hold more data or uneven distribution causes shard exhaustion. Consistent hashing (Chapter 5) helps.
  • Celebrity/hotspot key problem: Excessive access to specific shard overloads server. Solution: allocate dedicated shards for celebrities.
  • Join and de-normalization: Hard to perform JOINs across shards. Workaround: de-normalize so queries work on single table.

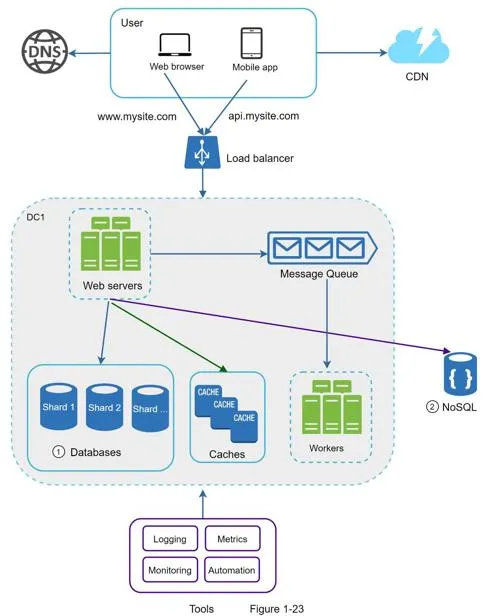

Summary: scaling to millions of users #

• Keep web tier stateless
• Build redundancy at every tier
• Cache data as much as you can
• Support multiple data centers
• Host static assets in CDN
• Scale data tier by sharding
• Split tiers into individual services
• Monitor your system and use automation tools
